HOWO TX 375 HP — 8 m³ concrete mixer
6×4 diesel concrete mixer with a 9.5 L Weichai engine, manual transmission and Eaton hydraulics with a ZF reducer.
Mixing capacity
8 m³ nominal mixing capacity. The drum’s geometric volume is 14.8 m³; these are different measurements.
Technical specifications
| Drive configuration | 6X4 |
|---|---|
| Steering position | LEFT |
| Platform | HOWO TX |
| Fuel | Diesel |
| Operating conditions | Standard type |
| Vehicle model | ZZ1257N384GF1 |
| Wheelbase (mm) | 3800+1400 |
| Declared chassis dimensions (mm) | 8900*2617*3923 |
| Front / rear overhang (mm) | 1540/1400 |
| Declared chassis kerb weight (kg) | 13620 |
| Declared gross vehicle weight (kg) | 41000 |
| Maximum speed (km/h) | 80 |
| Cab | TX-F |
| Air conditioning | Included |
| Four-direction cameras | Included |
| Electric cab tilting | Included |
| Adjustable steering wheel | Included |
| Cab spring suspension | Included |
| Electric mirrors | Included |
| Air-suspended driver seat | Included |
| MP5 and multifunction steering wheel | Included |
| Declared cab dimensions | 1880*2240*1485 |
| Engine model | WP10H375E62（375HP） |
| Displacement | 9.5L |
| Maximum power | 375HP@1900rpm(276KW) |
| Maximum torque | 1800N.m/1000-1400rpm |
| Engine brand | WEICHAI |
| Declared emissions | EURO Ⅵ |
| Clutch | Dry single disc with diaphragm spring; hydraulic actuation with pneumatic assistance |
| Declared clutch diameter | φ430 |
| Gearbox model | HW25712XSCJ |
| Gear ratios | i1=11.697 ;i2=9.091 ;i3=7.036 ;i4=5.468 ;i5=4.318 ;i6=3.381 ;i7=2.709 ;i8=2.105 ;i9=1.629 ;i10=1.266 ;i11=1 ;i12=0.783 ; R1 =11.515 ;R2=9.596 |
| Gearbox brand | SINOTRUK |
| Service brake | Air Brake |
| Auxiliary brake | Engine brake EVB |
| Front suspension | Steel spring suspension |
| Rear suspension | Steel spring suspension |
| Front axle | VGD95 |
| Front brake | Drum Brake |
| Declared front axle load | 9,500Kg |
| Rear axles | MCX16ZG(Double Axle With Man Tech） |
| Rear axle ratio | 4.803 |
| Rear brakes | Drum Brake |
| Declared rear axle load | 16,000Kg*2 |
| Tyres | 315/80R22.5 |
| Tyre quantity | 10+1 |
| Steering | BOSCH |
| Fuel tank | 400L |
| Rated voltage | 24V |
| Batteries | 180A.H/2 |
| ABS 4S/4M | Included |
| Central locking | Included |
| Power doors and windows | Included |
| Viscous fan clutch | Included |
| Electric engine shutdown | Included |
| Power steering | Included |
| Hydraulic pump | EATON 5423-518 |
| Hydraulic motor | EATON 5433-267 |
| Drum reducer | ZF P5300 |
| Drum geometric volume | 14.8 m³ |
| Loading / discharge rate (m³/min) | ≥3 / ≥2 |
| Residual (%) | ≤0.2% |
| Declared inclination angle | 13.5 |
| Water tank type | Pneumatic |
| Water tank capacity | 350L |
| Drum material | 5mm,750GJ |
| Drum head | 8mm,Q345B |
| Wear segments and fins | 3-5mm,B520 |
| Discharge | Electric control with hydraulic power |
| Recording cameras | Four exterior cameras: front, rear, left and right; one in the cab |
| Radar sensors | 4 front, 4 rear and 6 right-side probes for the 6×4 configuration |
| Warning lamp | One unit at the top centre of the cab |

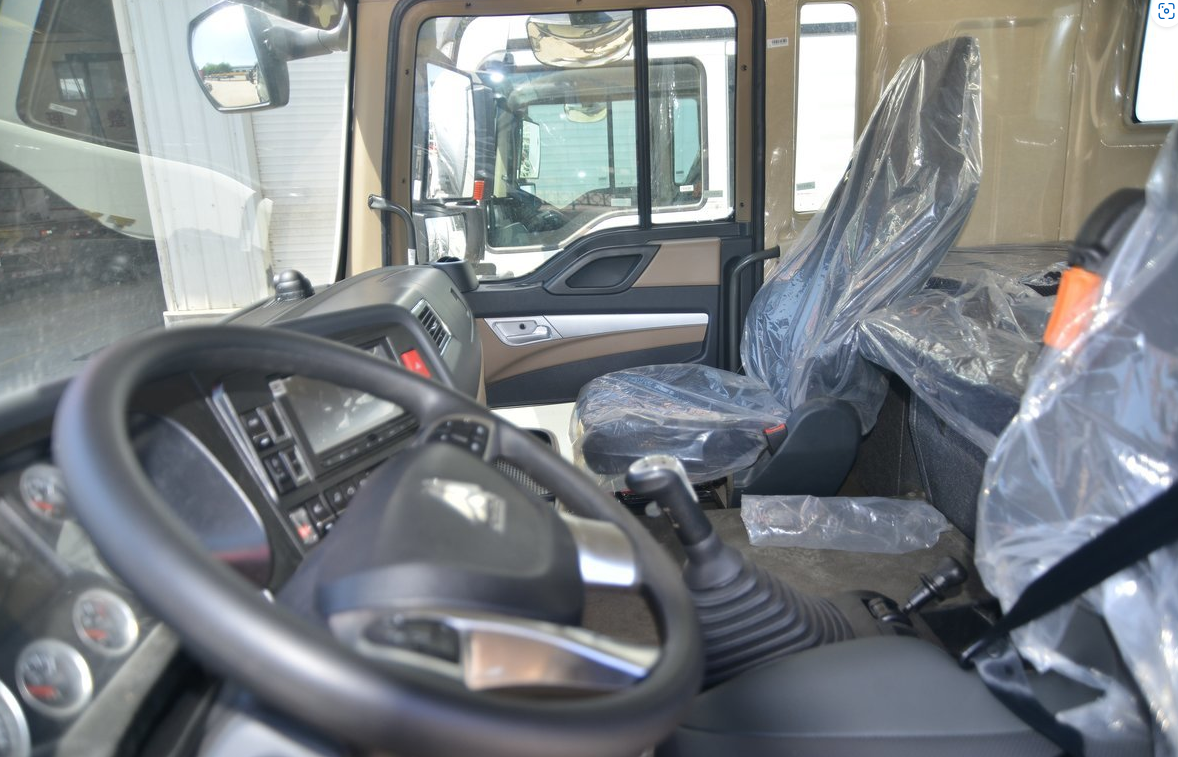

Cab interior
Before selecting your vehicle
Weights, emissions and capacities are as stated in the source. Final selection depends on application, configuration, homologation and availability in Mexico.
